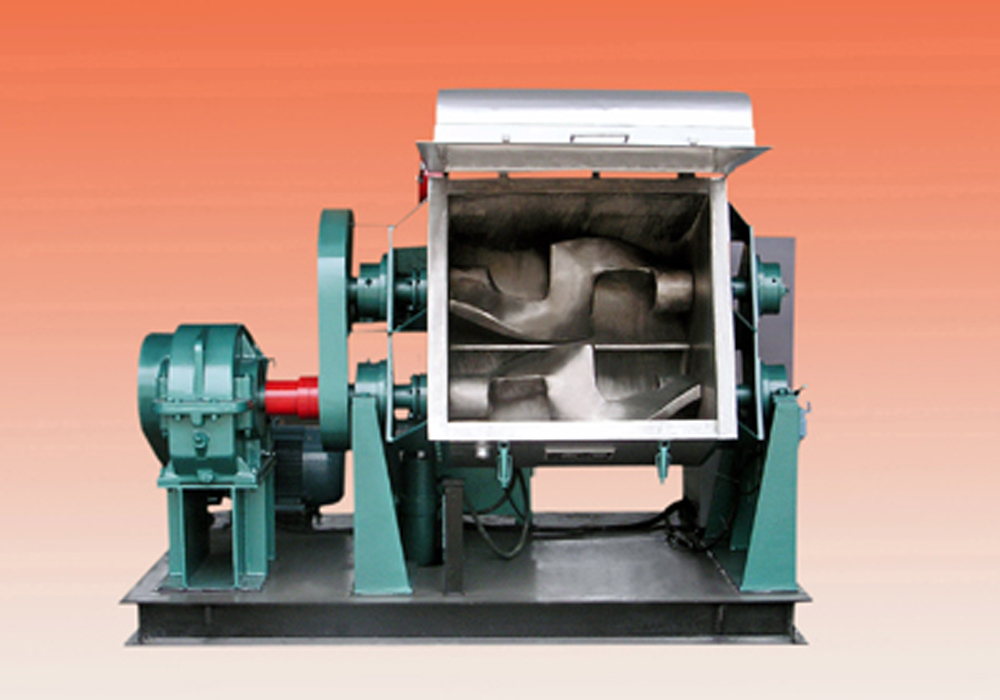

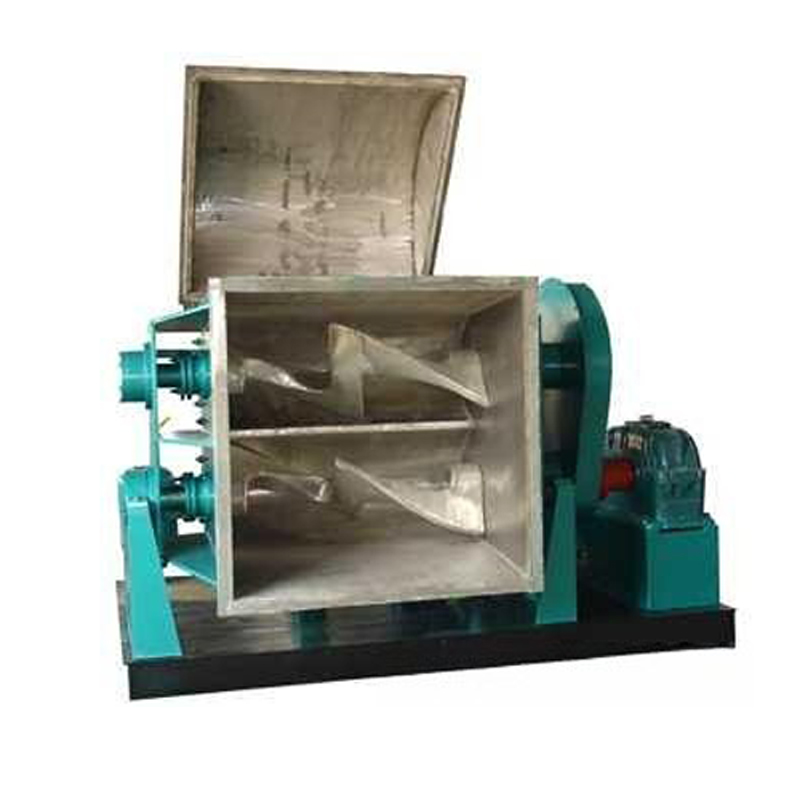

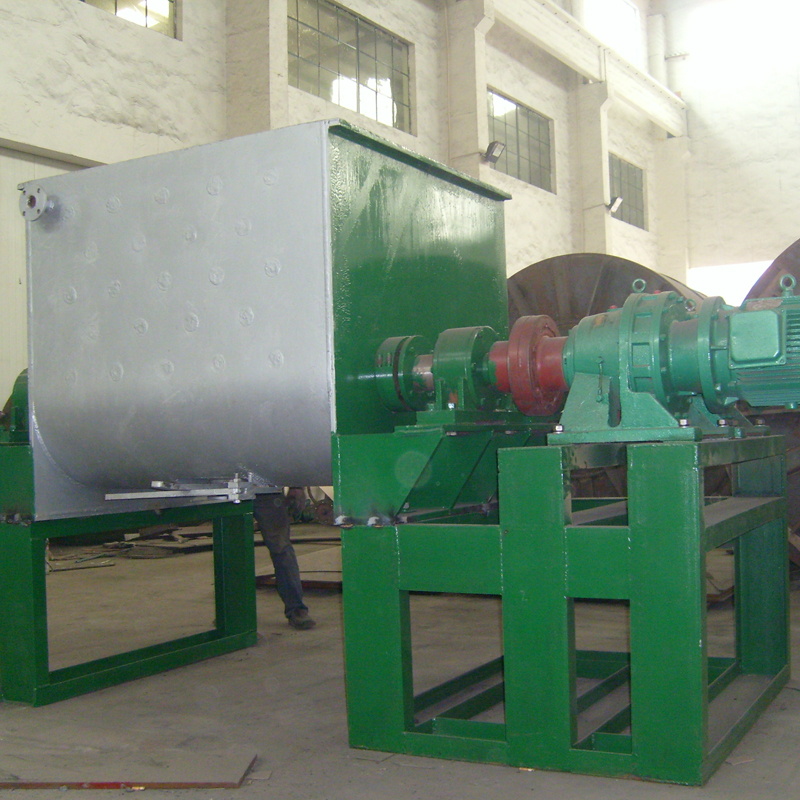

Kneading Mixer

A kneading mixer is an ideal equipment for kneading, mixing, vulcanization and polymerization of high viscosity, elastic or plastic materials. The kneading mixer  can be used to produce silicone rubber, sealant, hot melt adhesive, food adhesive base, pharmaceutical preparation, etc. kneading mixer is a special kind of mixing and stirring equipment with two Σpaddles. The fast paddles usually rotate at 42 rpm and the slow paddles usually rotate at 28 rpm. The different paddle speeds allow for rapid homogeneous mixing of the blended material.





Description

Features

Our kneading mixer has the following improvements for the amino molding plastic industry

  1. The blade with serrated edges provide better pulp shredding.
  2. Our kneading mixer are equipped with temperature control system to prevent resin aging.
  3. Our kneading mixer are equipped with a special placement for the pulp to reduce the load of the motor when feeding.



Technical parameters

Volume Products Material Power(KW) Discharge Heating  Dehydration form
500L A1 UMC CS304 7.5 Hydraulic overturning cylinder Steam/ Heat transfer   oil Induced draft fan(IDF)
1500L A1 CS304 18.5 Hydraulic overturning cylinder Steam/ Heat transfer   oil Induced draft fan(IDF)
2000L A1/A5 UMC/MMC CS304 22 Hydraulic overturning cylinder/ bottom valve Steam/ Heat transfer   oil Induced draft fan(IDF)/vacuum dehydration
2900L A1/A5 CS304 30 Hydraulic overturning cylinder/ bottom valve Steam/ Heat transfer   oil Induced draft fan(IDF)/vacuum dehydration
4800L A5 CS304 45 Hydraulic overturning cylinder Steam/ Heat transfer   oil Induced draft fan(IDF)
