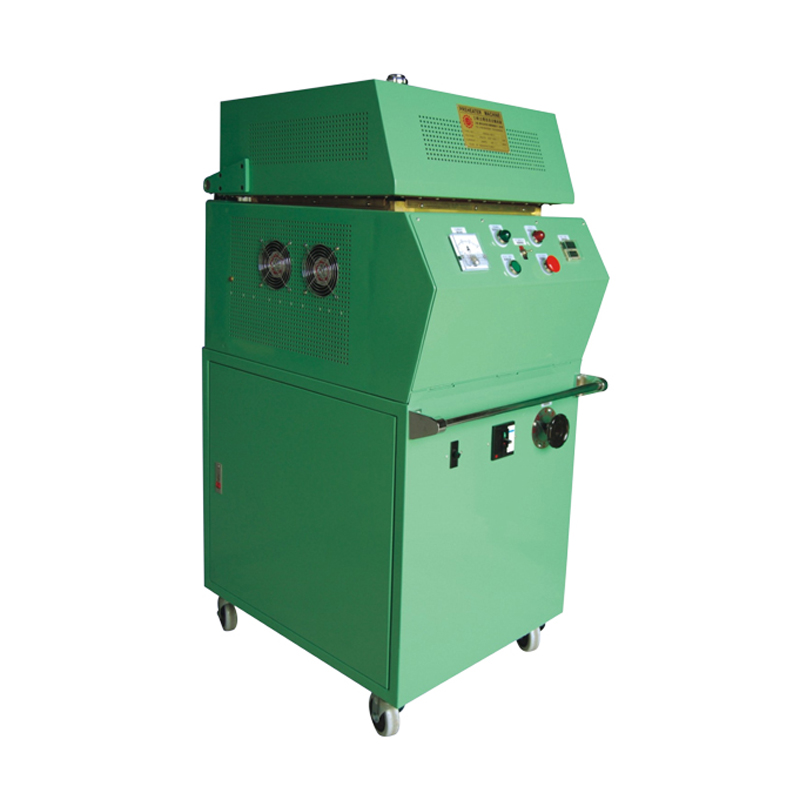

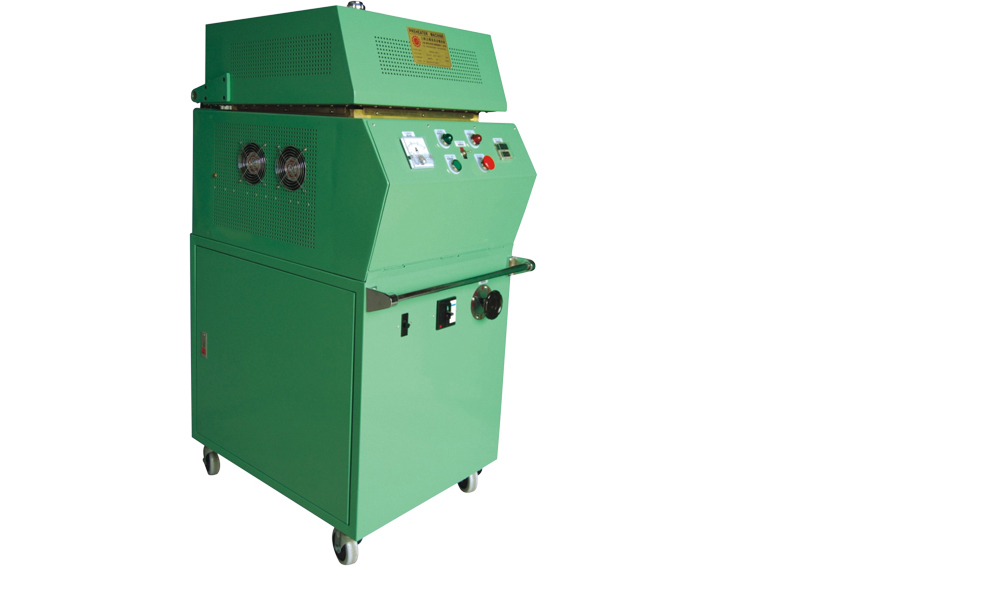

High Frequency Preheater

Description

Specifications Flat electrode Rollet Electrode
Model LEP-520 LEP-323 LEP-523 LEP-723
Output 5W 3W 5W 7W
Power Source 3ø220V
380V
415V
3ø220V
380V
415V
3ø220V
380V
415V
3ø220V
380V
415V
Power lnput 11kVA 6.7kVA 11kVA 13kVA
Oscillation Frequency 62MHZ 72MHZ 72MHZ 72MHZ
oscillation Tube 7T7OB
7T69RB
7T85RB 7T69RB                                7T70R 7T69RB
Voltage Switching 3-stage 3-stage 3-stage 3-stage
Time 999.9S 999.9S
Arrangement of Hood Motor type automatic opening and closing
Preheatin Power 110°C Within 90 secs.
Phenoilc Resin 1200gr
Melamine Resin 1000gr 240gr 450gr 720gr
Urea Moulding Compund 1500gr
Electrode Size 310x340m/m
Electrode Spacing 30~70m/m
Dimensions 620x860x1520 620x860x1520
Weight 260kg 180kg 260kg 320kg
Wooden Crate Size 730x950x1700 730x950x1700
